New Safety Features:

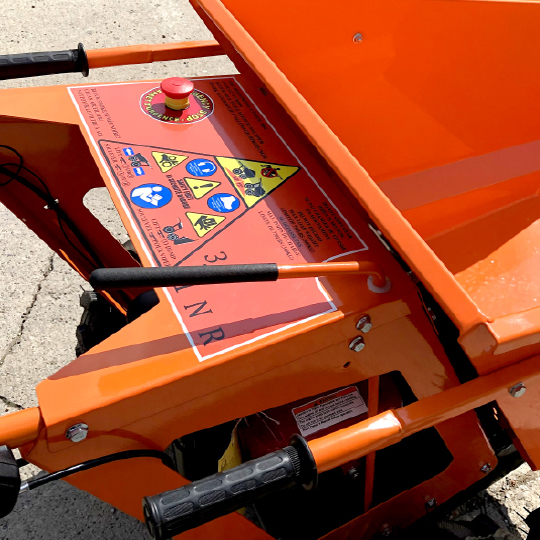

"DASH" quick safety shut-off Single operation brake/clutch lever Easy to read Safety Decals on machine.

We have the best service and supplies for all power wheelbarrows. Because of our outstanding service, we listen to our customers and work to improve the quality of our power wheelbarrows.

The 2018 models have been rebuilt to include the improvements in strength, power and capacity our customers have recommended.






Driveline:

Chain Driven 4x4 all-wheel operation
6 Cubic foot storage capacity
750lbs (340kg) weight
Wheels: Front 400x10 4ply / Rear 400x8
Break: Hand Powered Disc Brakes
New Standard Upgrades

Components:

Automotive grade operating cables
High strength billet aluminum levers
Heavy duty galvanized steel sprockets &   underbody operating links
Solid steel BIN with strong tested welds





Engine:

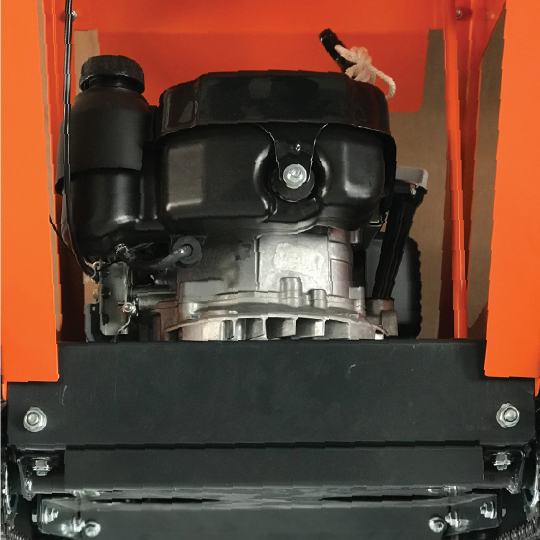

Honda GXV 5.5 hp series engine
5 Galon (27.75 Litre) gas tank
NEW & improved. Custom built for
  our power wheelbarrow model series.
Peerless type Transaxle System.
  Mechanical component that combines
  the functionality of the transmission &
  axle into one integrated assembly.
Manual Shift Gearing:
  3 Forward / 1 Netural / 1 Reverse

Functionality:

Easy to operate for any worksite or job
Manual start option available
Electric start option available


Power Supply 5.5HP Engine (GAS)
1. Honda Manual 2. Honda Electric
Max Torque Transmission:
(3) Forward (N) (1) Reverse (manual)
Clutch (Manual) Kevlar Long Life Clutch Belt
Tire Size: F 400 x 10, R 400 x 8
Wheel Base: 524mm
Capacity: 7ft3 (Loose Fill)
Load Weight: 750Lbs / 340KG
Product Size: L 1602mm, H 845mm, W 812mm
Dry Weight: 325Lbs / 147KG
Frame: Unibody Design
Bin Operation: Manual
Safety Stationary Brake Lock: Disc
Safety Kill: Dash Board & Throttle
Packing Size for 1 pc:
1300*800*1000mm (Steel Frame)
Loading Capacity: 20FCL: 45 pcs 40FCL: 90 pcs
